Qhov Chaw Keeb Kwm: |
Zhejiang, Suav |
|
Hom Lub Npe: |
hluas |
|
Specification: |
12 Pin Poj Niam Waterproof Wiring Connector ntsaws 1-1703639-1 |
|
Tus Qauv Zauv: |
1-1703639-1 |
|
OEM Qhov Tsis Muaj: |
1-1703639-1 |
|
Hom: |
Khoom uas pauv tau ib yam |
|
Xim: |
Dub |
|
Txiv neej los yog poj niam: |
Poj niam |
|
Txuas Hom: |
Muab kaw |
|
Ntawv pov thawj: |
TUV, TS16949, ISO14001 system thiab ROHS |
|
Tsim muaj peev xwm: |
Peb tuaj yeem muab cov qauv, OEM & ODM txais tos. Customized Drawing Nrog Decal, Frosted, Sau Muaj Raws li thov |
|
MOQ: |
Kev txiav txim me me tuaj yeem txais |
|
Them Nyiaj: |
30% tso nyiaj ua ntej, 70% ua ntej xa khoom, 100% TT ua ntej |
|
Ntim: |
100,200,500,500,1000pcs toj ib lub hnab nrog daim ntawv lo, export txheem thawv |

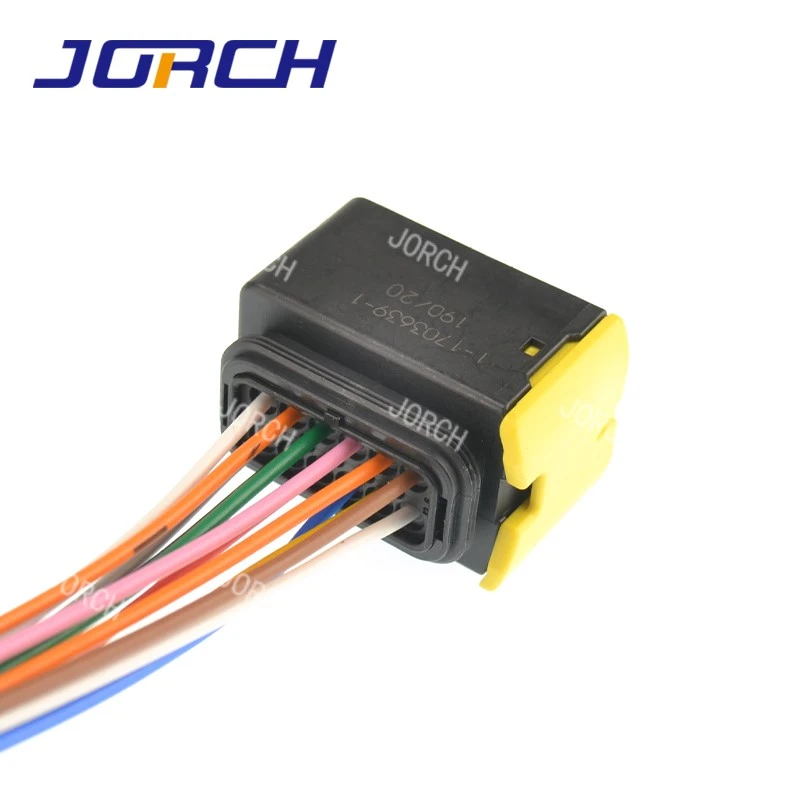

Automotive connector 1-1703639-1 yog ib yam khoom. Hauv qab no yog cov ncauj lus kom ntxaws qhia txog lub connector:
Cov Lus Qhia Yooj Yim
- Tus neeg tsim khoom naj npawb: 1-1703639-1
- Yam khoom: automotive connector
- RoHS: Raws li
Kev Ua Tshwj Xeeb
- Tus naj npawb ntawm cov haujlwm: 12 txoj haujlwm (12POS)
- Hom: Poj Niam, tseem hu ua cov khoom noj
- Installation style: Cable Mount / Dawb dai
- Suab: 4mm
- Xim: Dub
- Cov Khoom Siv Vaj Tsev: Polybutylene Terefthhalate TereCthalate, PBT)
- Ntu Kev Tiv Thaiv Theem: IP67, qhia tau hmoov av zoo thiab dej tsis kam
- Qhov siab tshaj plaws / qhov siab tshaj plaws kev khiav hauj lwm kub: +140 degree /-40 degree (qee cov ntaub ntawv kuj qhia tau hais tias qhov tsawg kawg nkaus khiav hauj lwm kub yog -10 degree thiab qhov siab tshaj plaws khiav hauj lwm kub yog 130 degree, tab sis qhov no tej zaum yuav nyob ntawm seb qhov tshwj xeeb daim ntawv thov scenario lossis khoom batch)
- Kev Ntsuas Ntsuas: 42VDC
Qhov loj me:
- Qhov siab: 31.25mm
- Ntev: 54.1mm (tseem muaj ntau yam kev tshwj xeeb ntev muaj)
- Dav: 25.7mm
- Flammability ntsuam xyuas: UL94V -0
- Xauv mechanism: Ntawm lub davhlau ya nyob twg
- Termination hom: Crimp
- Qhov ntau kawg nkaus xaim goosge: 16 AWG
- Hom kev sib cuag: Tsis muaj qhov sib tiv tauj
Khoom nta
- Heavy-duty sealing: Cov khoom sib txuas no belongs rau lub luag haujlwm hnyav sealing series thiab tsim nyog rau cov kev thov siab heev xws li kev siv hluav taws xob hauv tsheb.
- Slider locking qauv: Lub slider locking qauv yog siv rau kev sib txuam kom muaj kev ruaj ntseg thiab kev ntseeg siab ntawm kev sib txuas.
- Ntau qhov kev xaiv tseem ceeb code: muab ntau txoj cai tseem ceeb rau kom tau raws li cov cai thov sib txawv.
- Yuam kev-cov ntawv pov thawj feating: tsim nrog kev ua yuam kev-pov thawj cov nta kom tsis txhob muaj kev teeb tsa tsis raug thiab siv.
Daim ntawv thov Scope
Mas siv nyob rau hauv cov khoom siv hluav taws xob hluav taws xob hluav taws xob hluav taws xob thiab lwm yam xwm txheej hluav taws xob uas yuav tsum muaj kev ntseeg siab thiab ruaj khov.
Cim npe nrov: 12 Tus PIN Poj Niam Automotive Hlau Sam Ncaws Pob Hlau Wiring Txuas Hlau Throtof Hlau Sam Ncaws Pob Hlau
