Khoom Paub meej
|
Qhov Chaw Keeb Kwm: |
Zhejiang, Suav teb |
|
Hom Lub Npe: |
jorch |
|
Specification: |
PCB txoj cai kaum tin plated header Connector |
|
Qauv nab npawb: |
776280-1 |
|
OEM Tshooj NO: |
776280-1 |
|
Hom: |
Adapter |
|
Xim: |
Dub |
|
Ib qho hnyav tag nrho: |
0.063 kg |
|
Hom Connector: |
Muab kaw |
|
Ntawv pov thawj: |
TUV, TS16949, ISO14001 System thiab RoHS |
|
MOQ: |
Kev txiav txim me me tuaj yeem txais |
|
Lub sij hawm xa tuaj: |
Muaj peev xwm txaus thiab muaj peev xwm ntau lawm kom ntseeg tau raws sijhawm |
|
Tsim Muaj peev xwm: |
Peb tuaj yeem muab cov qauv, OEM & ODM txais tos. Customized Drawing Nrog Decal, Frosted, Sau Muaj Raws li thov |

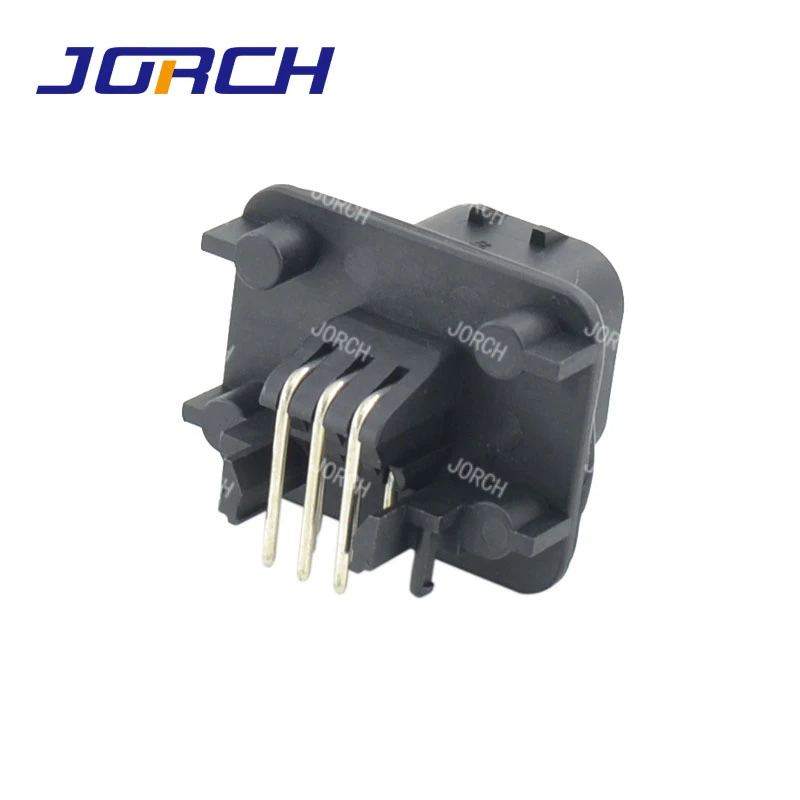

automotive connector 776280-1 yog AMP hom khoom, tshwj xeeb yog PCB board connector los ntawm AMPSEAL series. Nov yog qee qhov tseem ceeb ntawm cov connector no:
- Connector system: Hlau-rau-board
- Tus naj npawb ntawm txoj haujlwm: 8
- Ntau kab: 3
- Centerline (pitch): 4 mm [.157 nyob rau hauv]
- PCB mounting orientation: Txoj cai kaum
- Npog tag nrho
- Tin plated
- Los ntawm lub qhov soldering
- Sealing tau
Cov khoom sib txuas no yog tsim los muab kev sib txuas hluav taws xob txhim khu kev qha hauv tsheb ib puag ncig thiab feem ntau yog siv los txuas cov hlua hlau rau PCB boards. Nws muaj lub sealing feature uas tiv thaiv cov hluav taws xob sib txuas sab hauv los ntawm ya raws, plua plav, thiab lwm yam ib puag ncig.
Qhov no txhais tau hais tias nws yog 8- txoj hauj lwm txuas nrog 1.3mm txoj kab uas hla tus pin, 90-degree kaum sab xis board header los ua ke, thiab yog solderable. Tsis tas li ntawd, nws muaj lub sealing feature ntawm AMPSEAL rau kev tiv thaiv ntxiv.
Piv txwv li, DigiKey Electronics muab cov khoom sib txuas no rau kev muag, thiab tus nqi yuav txawv nyob ntawm seb qhov ntau npaum li cas. LiChuang Mall tseem muab cov ntaub ntawv Suav thiab PDF phau ntawv rub tawm rau cov khoom no, nrog rau cov ntaub ntawv gradient nqi.
