Khoom Paub meej
|
Qhov Chaw Keeb Kwm: |
Zhejiang, Suav teb |
|
Hom Lub Npe: |
jorch |
|
Specification: |

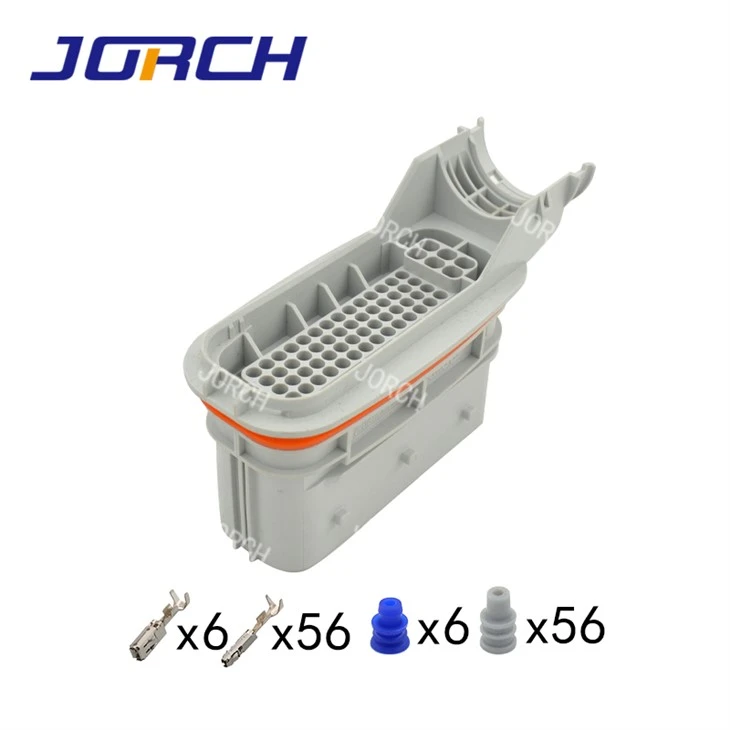

62 Pin Txiv neej Grey ECU Plug Waterproof Auto Connector 2-1718324-1 |
|
Qauv nab npawb: |
2-1718324-1 |
|
OEM Tshooj NO: |
2-1718324-1 |
|
Hom: |
Adapter |
|
Xim: |
Grey |
|
Txiv neej los yog poj niam: |
Poj niam |
|
Hom Connector: |
Muab kaw |
|
Ntawv pov thawj: |
TUV, TS16949, ISO14001 System thiab RoHS |
|
Stlye: |
sealed connector ntsaws |
|
Ib pob loj: |
10 X 11 X 10 cm |
|
Ntim: |
100,200,300,500,1000PCS ib lub hnab nrog daim ntawv lo, Export Standard Carton |
|
Tsim Muaj peev xwm: |
Peb tuaj yeem muab cov qauv, OEM & ODM txais tos. Customized Drawing Nrog Decal, Frosted, Sau Muaj Raws li thov |
automotive connector 2-1718324-1 yog LEAVYSEAL series connector. Nov yog qee yam ntawm cov yam ntxwv tseem ceeb thiab cov kev qhia tshwj xeeb ntawm lub connector no:
Cov yam ntxwv yooj yim
- Series: LEAVYSEAL Series
- Khoom siv: PBT GF (iav fiber ntau reinforced polybutylene terephthalate), muaj zog txhua yam muaj zog thiab tshuaj lom neeg.
- Xim: Khaki.
- Daim ntawv pov thawj: RoHS thiab ELV ua raws.
Specifications
- Tus naj npawb ntawm qhov: 62 qhov.
- Tus naj npawb ntawm kab: 3 thiab 4 kab.
- Qhov siab: 4.5mm.
- Tam sim no muaj peev xwm: 40A.
- Rated voltage: 36V DC.
- Ua haujlwm kub ntau: -40 degree txog 120 degree .
- Cov nplaim hluav taws kub: UL94HB.
- Sealing: Waterproof, nrog IP67 thiab IP69K tiv thaiv qib.
Daim ntawv thov teb
Cov khoom sib txuas no yog tsim rau ntau yam khoom siv hluav taws xob hauv tsheb, suav nrog tab sis tsis txwv rau tsheb tiv thaiv tub sab tub nyiag, lub qhov rais ntse kaw tshuab, ib lub khawm pib, tshuab cua txias, hauv tsheb lom zem tshuab, hnub ci lub qhov rooj thiab qhov rais. , thim rov qab radars, tswj lub teeb taub hau, lub log tsheb siab xyuas lub tshuab, ntsuas tshuab, teeb pom kev zoo, cov hlua khi hlua sib dhos, ABS systems, thiab lwm yam.
Lwm yam nta
- Polarity: B.
-Suab: Rectangular.
- Hlau qhov hluav taws xob: 90 degree.
- Hybrid connector: Yog.
- Lub ntsiab xauv feature: Ntawm cov khoom siv.
- Kev Kho: Yog.
Vim nws txoj kev ntseeg siab thiab ntau yam kev siv, lub connector no tau siv dav hauv automotive electronics field los xyuas kom meej qhov siv tau, kev ntseeg tau thiab kev nyab xeeb ntawm automotive hluav taws xob circuits.
Cim npe nrov: 62 tus pin txiv neej grey ecu plug waterproof nws pib connector 2-1718324-1 rau volvo tsheb, Tuam Tshoj 62 pin txiv neej grey ecu plug waterproof nws pib connector 2-1718324-1 rau volvo tsheb thauj khoom manufacturers
