Khoom Paub meej
|
Qhov Chaw Keeb Kwm: |
Zhejiang, Suav teb |
|
Hom Lub Npe: |
jorch |
|
Specification: |

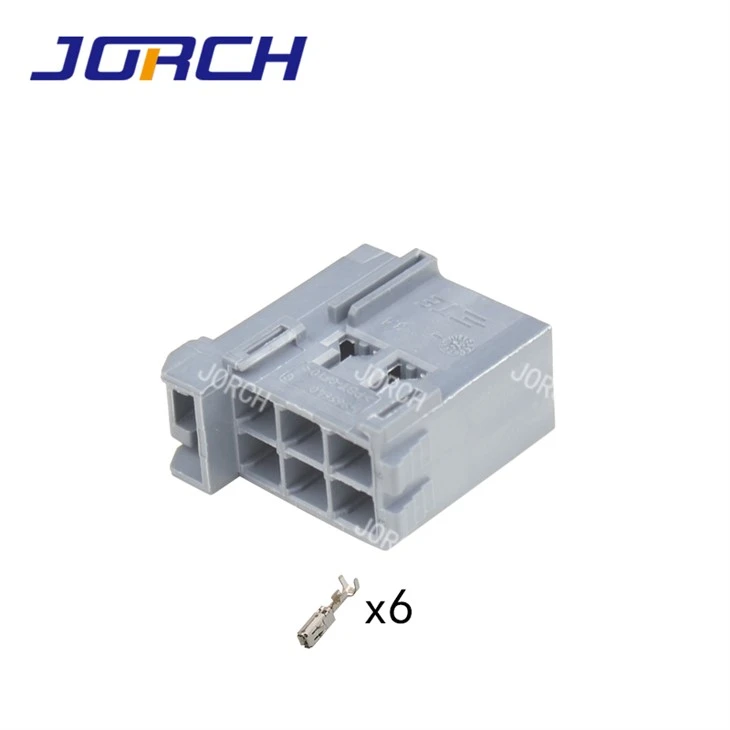

2355073-1 AMP Tyco Poj Niam PBT-GF15 6 Pin Connector 2.8 Rau Automotive |
|
Qauv nab npawb: |
2355073-1 |
|
OEM Tshooj NO: |
2355073-1 |
|
Hom: |
Adapter |
|
Xim: |
Grey |
|
Txiv neej los yog poj niam: |
Poj niam |
|
Hom Connector: |
Muab kaw |
|
Ntawv pov thawj: |
TUV, TS16949, ISO14001 System thiab RoHS |
|
Ib pob loj: |
8x8x 9 cm |
|
Ntim: |
100,200,300,500,1000PCS ib lub hnab nrog daim ntawv lo, Export Standard Carton |
|
Ib qho hnyav tag nrho: |
0.064 kg |
|
Lub sij hawm xa tuaj: |
Muaj peev xwm txaus thiab muaj peev xwm ntau lawm kom ntseeg tau raws sijhawm |
Raws li cov txiaj ntsig tshawb fawb, cov hauv qab no yog kev taw qhia ntawm lub tsheb txuas 2355073-1:
1. Yam khoom nta:
- Connector Shape: Rectangular
- Connector System: Hlau-rau-Wire
- Txuas thiab Hom Tsev: Poj Niam Terminal Housing
- Sealable: Tsis yog
- Txuas thiab Terminal Terminated rau: Hlau thiab Cable
- Qhov Tseem Ceeb Xauv Feature: Plhaub Integrated
- Hybrid Connector: Tsis yog
2. Cov yam ntxwv zoo:
- Tus naj npawb ntawm txoj haujlwm: 6
- Tus naj npawb ntawm kab: 3
3. Hluav taws xob nta:
- Ua Haujlwm Voltage (VDC): 28
- Nominal Voltage Architecture (V): 12
4. Lub cev nta:
- Hlau tawm lub kaum sab xis: 180 degree
- Cov Khoom Tseem Ceeb Xim: Grey
- Kev sib txuas thiab Keying Code: A
5. Hu rau nta:
- Terminal Hom: Poj niam
- Terminal Loj: 2.8mm
- Mating Tab Dav: 2.8mm [.11 nyob rau hauv]
6. Mechanical Attachments:
- Mating Alignment: Yog
- Mating Alignment Hom: Keyed
-Txoj kev nyem: Yog
- Txuas Mounting Hom: Cable Mount (dawb dai)
- Terminal Position Assurance: Tsis yog
7. Vaj tse nta:
- Khoom siv tsev: PBT GF
- Centerline (Pitch): 2.5mm [.098 nyob rau hauv]
8. Qhov Loj:
- Kab nrug: 5.5mm [.216 nyob rau hauv]
9. Ib puag ncig:
- Kev Ua Haujlwm Kub Kub: -40 - 120 degree [– 248 degree F]
10. Kev Ua Haujlwm / Daim Ntawv Thov:
- Daim ntawv thov Circuit Court: Teeb liab
11. Kev lag luam Standard:
- Kev tiv thaiv ntsuas: IP30
Cov yam ntxwv no qhia txog cov yam ntxwv tseem ceeb thiab kev siv ib puag ncig ntawm 2355073-1 automotive connector, uas qhia nws qhov haum rau cov teeb liab circuits, cov yam ntxwv tshwj xeeb ntawm hluav taws xob thiab cov khoom siv hluav taws xob, thiab muaj peev xwm ua haujlwm nyob rau ntau qhov kub thiab txias.
