Qhov Chaw Keeb Kwm: |
Zhejiang, Suav teb |
|
Hom Lub Npe: |
jorch |
|
Specification: |
3 Pin Automotive Connector Dub Lub Hwj Chim Teeb Pom Kev |
|
Qauv nab npawb: |
DT04-3P-E004 |
|
OEM Tshooj NO: |
DT04-3P-E004 |
|
Hom: |
Adapter |
|
Xim: |
Dub |
|
Txiv neej los yog poj niam: |
Txiv neej |
|
Hom Connector: |
Muab kaw |
|
Ntawv pov thawj: |
TUV, TS16949, ISO14001 System thiab RoHS |
|
Kev Muag Khoom: |
Ib yam khoom |
|
Ib pob loj: |
12 X 11 X 6 cm |
|
Ib qho hnyav tag nrho: |
0.010 kg |
|
Muaj peev xwm muab khoom: |
100000 Daim / Daim ib hlis |

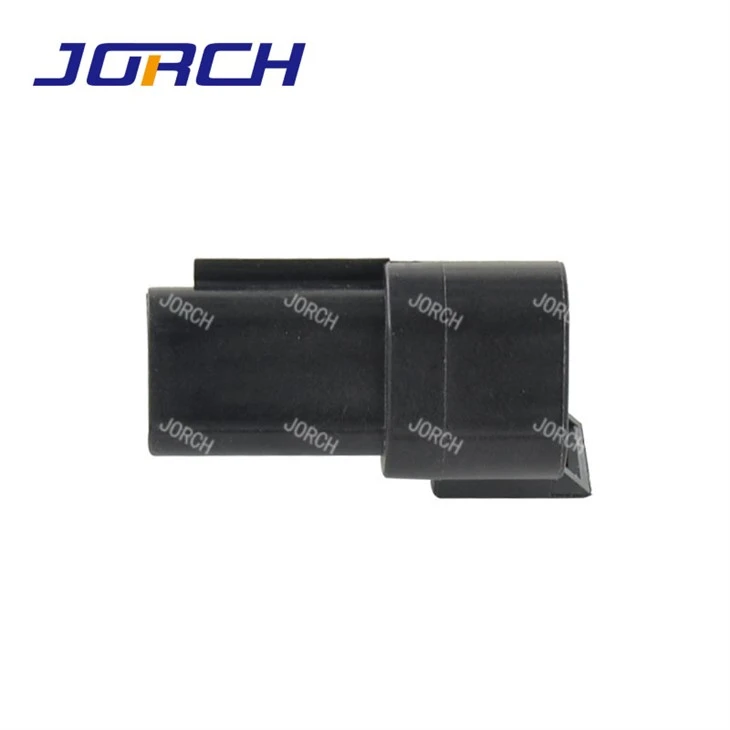

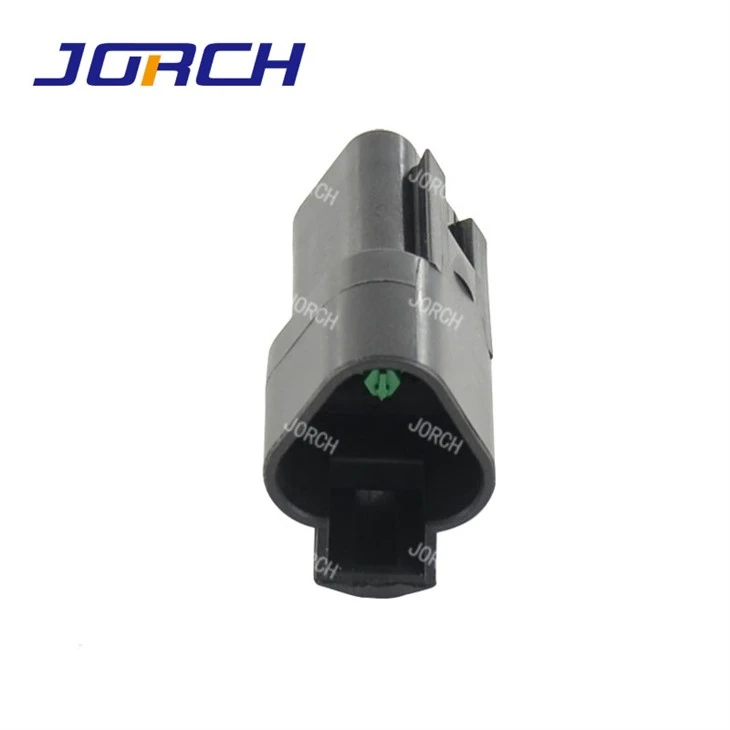

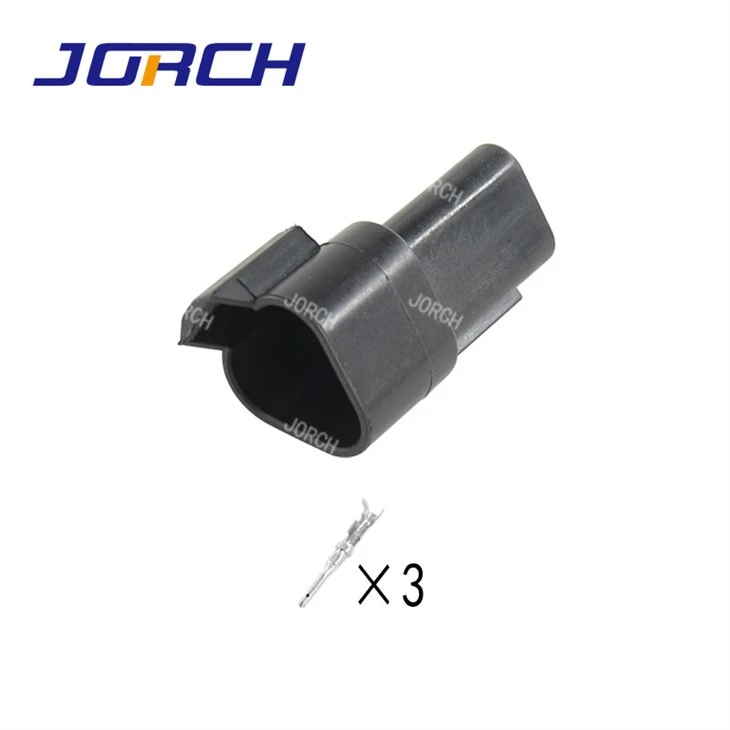

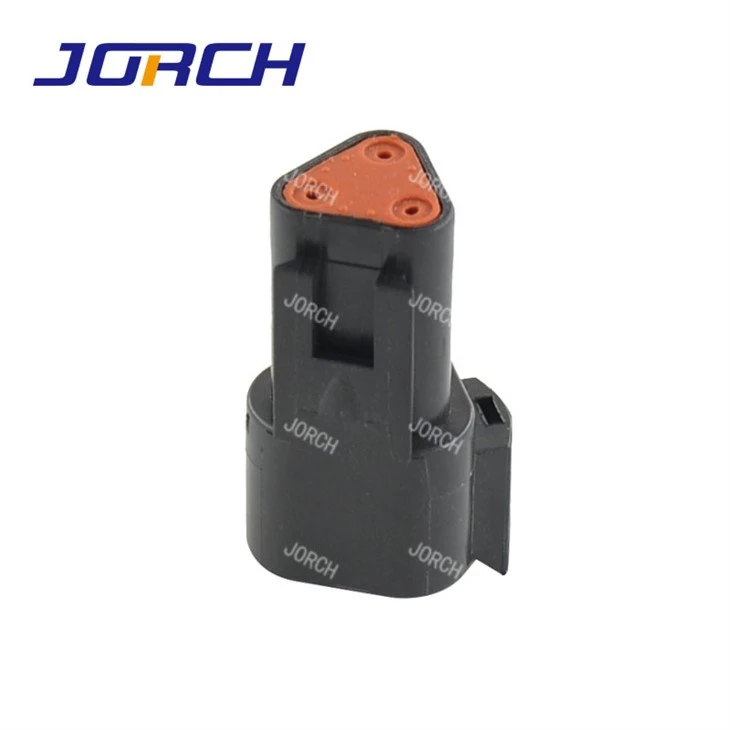

automotive connector qauv DT04-3P-E004 yog ib yam khoom uas belongs rau DEUTSCH DT series. Nov yog qee qhov tseem ceeb thiab cov lus qhia tshwj xeeb ntawm lub connector no:
- Yam khoom: Hlau-rau-hlau txiv neej Terminal vaj tse
- Tus naj npawb ntawm txoj haujlwm: 3
- Centerline (Pitch): 8.7 hli (.341 nyob rau hauv.)
- Sealable: Yog
- Xim: Dub
- Tiv tauj Hom: Pin
- Hu rau Qhov Loj: 16-gauge
- Hu rau tam sim no ntsuas: 13 Amps Max
- Kev khiav hauj lwm Voltage: 250V / 250Vdc
- Cable tawm lub kaum sab xis: 180 degree
- Rwb thaiv tsev Diameter Range: 2.23 - 3.68 mm (.088 - .145 nti)
- Khoom Ntev: 43.13mm (1.698 nti)
- Khoom Dav: 21.13mm (.832 nti)
- Connector Qhov siab: 24.71mm (.973 nti)
- Kev Ua Haujlwm Kub Kub: -55 degree txog 125 degree (-67 degree F txog 257 degree F)
- Ua haujlwm kub siab tshaj plaws: 125 degree (257 degree F)
- Daim ntawv thov Circuit Court: Fais fab
- Kev lag luam Standards: Raws li SAE J2030, UL Flammability Rating 12mm Nplaim Test, Ua Tau raws li UL -94
- Kev tiv thaiv ntsuas: IP68, IP6K9K
- Packing Method: Boxed
- Ntim Ntim: 850 pcs / carton
- Serviceability: Yog
Cov khoom txuas no yog tsim los rau kev sib txuas ntawm cable-rau-cable thiab muaj kev ua haujlwm siab ntawm ib puag ncig sealing. Nws muaj kev nyab xeeb, ntau yam thiab txhim khu kev qha, tshwj xeeb tshaj yog tsim rau kev siv tsheb. DT series muaj ntau yam kev sib txuas sib txuas rau 13A, suav nrog cov kev xaiv xws li cov qauv ncaj nraim, flange qhov (socket) thiab lub tes tsho adapter. Cov yam ntxwv ntawm DT04-3P-E004 connector ua rau nws yog ib qho kev xaiv zoo tshaj plaws rau kev sib txuas cov khoom siv hluav taws xob thiab hluav taws xob hauv tsheb xov hlau, ua kom muaj kev sib kis ntawm cov teeb liab hluav taws xob thiab kev ntseeg siab ntawm kev sib txuas hauv hluav taws xob.
