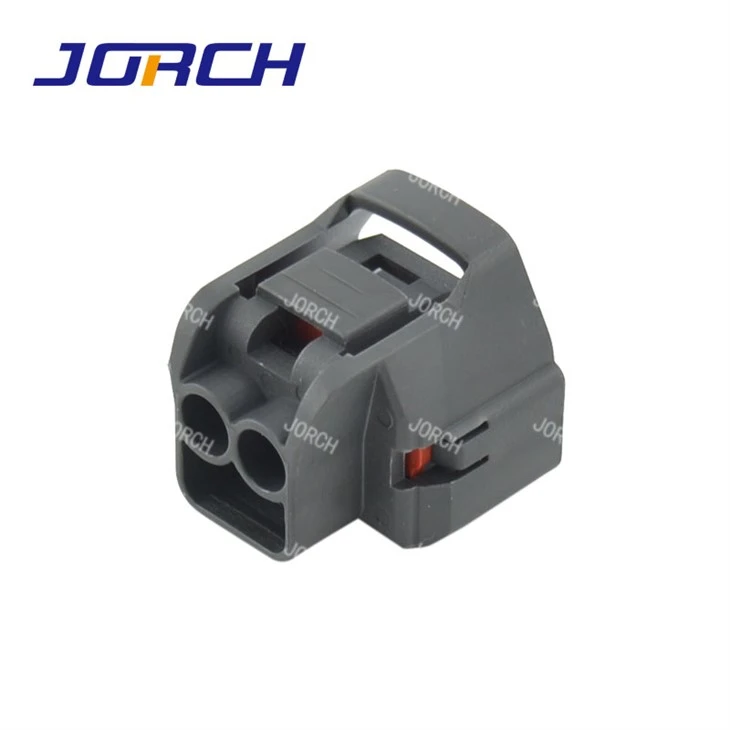

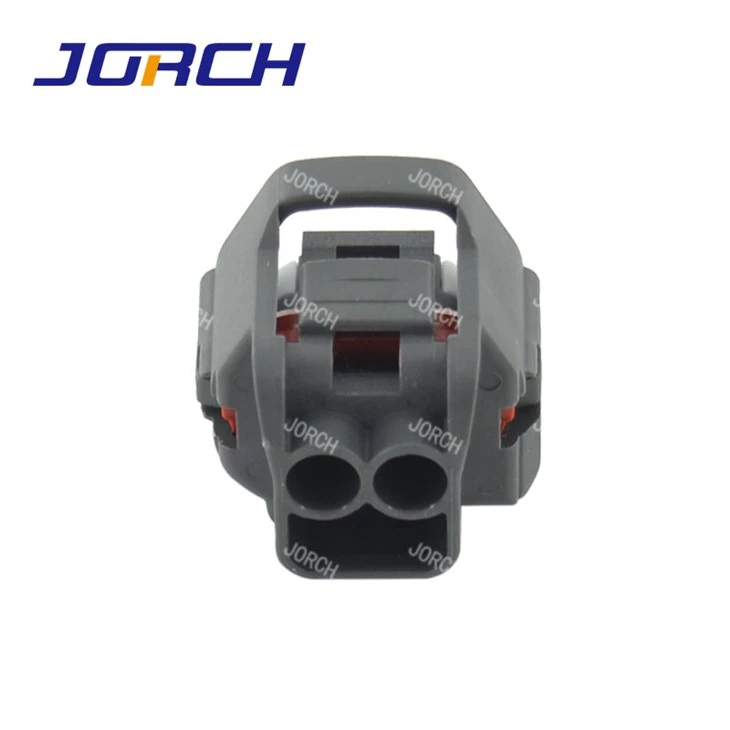

2 Pins Waterproof Automotive Connector rau Crank Cam 1JZ-GTE 2JZ-GTE 90980-10947 7283-7023-10

automotive connector qauv 7283-7023-10 yog ib tug 2.3II (090II) series poj niam davhlau ya nyob twg lub thawv nrog waterproof muaj nuj nqi thiab tsaus grey xim. Cov connector no tsuas yog siv rau kev sib txuas ntawm cov xaim-rau-xaim, xaim-rau-substrate kev sib txuas thiab kev sib txuas ncaj qha ntawm cov khoom siv hluav taws xob.

Cov ncauj lus kom ntxaws specifications ntawm 7283-7023-10 connector yog raws li nram no:

• Series: 2.3II (090II) connector
• Tus nab npawb khoom: 7283-7023-10
• Kev sib txuas hom: xaim-rau-xaim kev sib txuas, xaim-rau-substrate kev sib txuas, kev sib txuas ncaj qha rau cov khoom siv hluav taws xob
• Waterproof hom: waterproof
• Poj niam los txiv neej: poj niam
• Number of ncej: 2
• Txiv neej dav dav dav (mm): 2.3 (090)
• Cov khoom siv raw: PBT
• Xim: tsaus grey
• Rated tso cai tam sim no (tus nqi siv): 10A
• Tsawg voltage thiab tam sim no tsis kam: 3mΩ lossis tsawg dua (tus nqi pib)
• Rwb thaiv tsev: DC500V 100MΩ lossis ntau dua
• Ua haujlwm voltage: AC1000V (1 feeb)
• Siv qhov kub thiab txias: -40 degree -120 degree
• Cov khoom sib dhos muaj xws li davhlau ya nyob twg 7116 series thiab roj hmab ntsaws 7157 series, thiab lwm yam.

Tsis tas li ntawd, cov qauv sib txuam ntawm hom kev sib txuas no suav nrog txiv neej lub plhaub yas 7282-7023-10, thiab lwm cov poj niam cov khoom siv nrog cov hlau sib txawv thiab cov plating hom, xws li 7116-4025, 7116-4026, {{3 } }, 7116-4028-08 thiab 7116-4029-08, thiab lwm yam. Lawv txhua tus muaj nyob rau hauv 2.3II (090II) series thiab muaj dej tsis zoo.
