Qhov Chaw Keeb Kwm: |
Zhejiang, Suav teb |
|
Hom Lub Npe: |
jorch |
|
Specification: |
waterproof sensor plugs |
|
Qauv nab npawb: |
DJ7031C-15-21 |
|
OEM Tshooj NO: |
284425-1 |
|
Hom: |
Adapter |
|
Xim: |
Dub |
|
Txiv neej los yog poj niam: |
Poj niam |
|
Hom Connector: |
Muab kaw |
|
Ntawv pov thawj: |
TUV, TS16949, ISO14001 System thiab RoHS |
|
Stlye: |
sealed connector ntsaws |
|
Kev Muag Khoom: |
Ib yam khoom |
|
Ib pob loj: |
2 x 2 x 2 cm |
|
Ib qho hnyav tag nrho: |
0.10 kg |
|
Muaj peev xwm muab khoom: |
100000 Daim / Daim ib hlis |

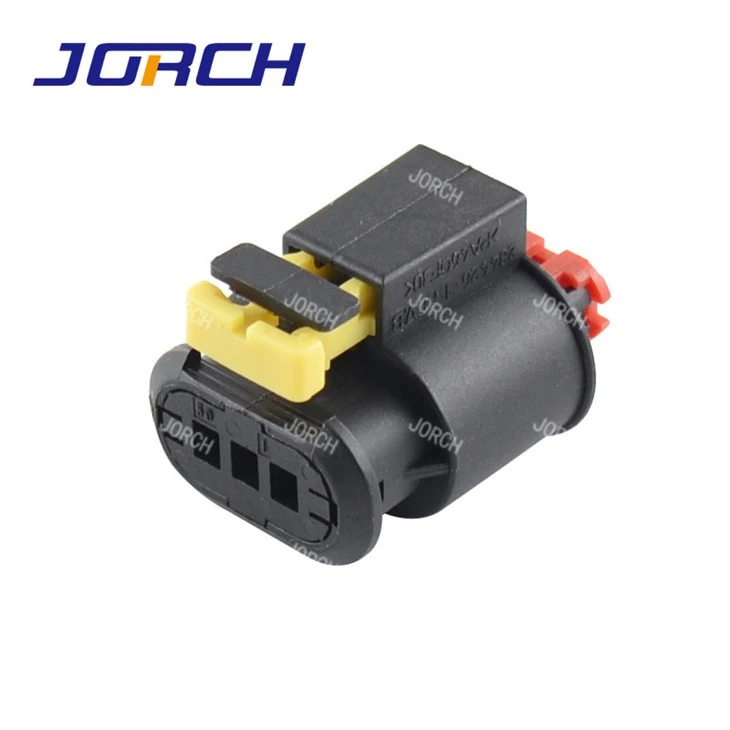

automotive connector qauv 284425-1 yog poj niam lub davhlau ya nyob twg ntawm AMP MCP 1.5K series nrog cov yam ntxwv hauv qab no:
- Cov khoom yog dub thiab sealable, haum rau kev sib txuas ntawm cov xov hlau thiab cables, feem ntau yog siv rau cov teeb liab kis tau tus mob.
- Lub davhlau ya nyob twg loj yog 1.5 hli, qhov dav ntawm mating txiv neej lub davhlau ya nyob twg kuj yog 1.5 hli, thiab qhov siab tshaj plaws ntsuas tam sim no ntawm lub davhlau ya nyob twg yog 9 txog 11 amps.
- Kev khiav hauj lwm voltage yog 24VDC, thiab lub nominal voltage architecture yog 12V thiab 24V.
- Cov khoom loj yog 35.51 hli ntev, 26.25 hli dav, thiab 22.6 hli siab.
- Cov khoom siv plhaub yog PA GF (polyamide nrog iav fiber), thiab cov khoom tseem ceeb xim yog xim dub.
- Kev khiav hauj lwm kub yog dav, los ntawm -40 degrees Celsius mus rau 140 degrees Celsius, nyob rau hauv txoj kab nrog IEC 529 IP 54 tus qauv, thiab kev tiv thaiv qib yog IP54K.
- Txoj kev ntim khoom yog bagged, 100 ib lub hnab, thiab tsis muaj cov yam ntxwv ntawm kev sib xyaw ua ke.
- Cov khoom no yog ua raws li RoHS, piv txwv li tsis muaj cov khoom phom sij thiab tsis muaj txhuas (Pb-Free).
Cim npe nrov: 2 pin poj niam waterproof sensor plugs tsheb automotive connector 284425-1, Tuam Tshoj 2 pin poj niam waterproof sensor plugs tsheb automotive connector 284425-1 manufacturers
