Qhov Chaw Keeb Kwm: |
Zhejiang, Suav teb |
|
Hom Lub Npe: |
jorch |
|
Specification: |
2 tus pin poj niam kaw series connector |
|
Qauv nab npawb: |
DJ7025B-22-21 |
|
OEM Tshooj NO: |
6189-0100 |
|
Hom: |
Adapter |
|
Xim: |
Grey |
|
Txiv neej los yog poj niam: |
Poj niam |
|
Hom Connector: |
Muab kaw |
|
Ntawv pov thawj: |
TUV, TS16949, ISO14001 System thiab RoHS |
|
MOQ: |
Kev txiav txim me me tuaj yeem txais |
|
Lub sij hawm xa tuaj: |
Muaj peev xwm txaus thiab muaj peev xwm ntau lawm kom ntseeg tau raws sijhawm |
|
Ntim: |
100,200,300,500,1000PCS ib lub hnab nrog daim ntawv lo, Export Standard Carton |
|
Tsim Muaj peev xwm: |
Peb tuaj yeem muab cov qauv, OEM & ODM Zoo siab txais tos. Customized Drawing Nrog Decal, Frosted, Sau Muaj Raws li thov |

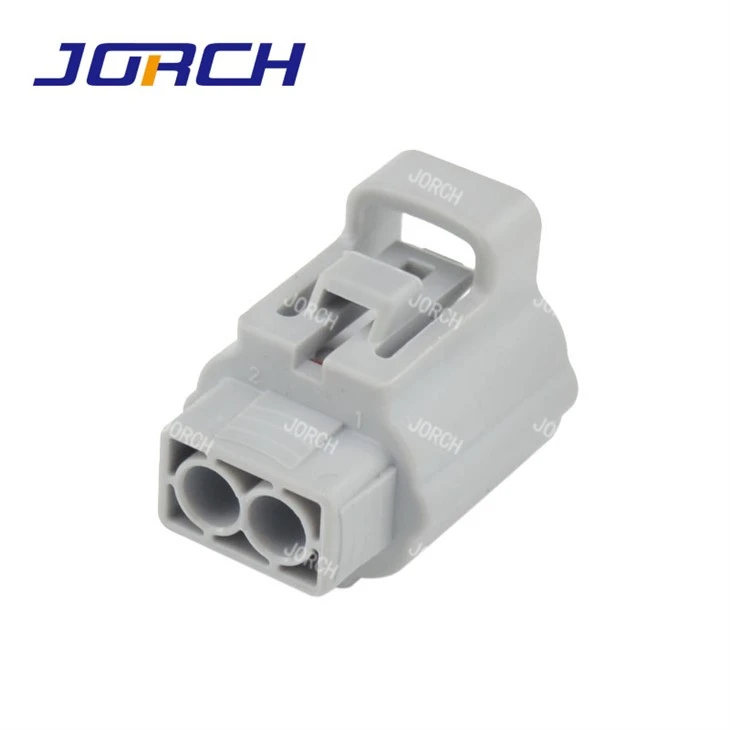

Lub tsheb txuas qauv 6189-0100 belongs rau TS waterproof series. Cov khoom txuas no yog 2-ncej (2 Txoj Kev) cov khoom lag luam nrog cov kab-rau-kab (Txiv neej / Poj niam) tsis muaj dej tsis zoo. Nws yog tsim los ntawm PBT thiab yog xim grey. Nws phim tus txiv neej connector qauv 6188-0047 thiab yog haum rau lub davhlau ya nyob twg loj ntawm 2.3 hli.
Kev tiv thaiv tiv thaiv ntawm 6189-0100 connector tsis tshaj 3mΩ thaum pib thiab tsis tshaj 10mΩ tom qab ua haujlwm ntev. Qhov siab tshaj tawm tam sim no yog 100μA, thiab cov rwb thaiv tsev tiv thaiv tsawg kawg yog 100MΩ. Nyob rau hauv cov nqe lus ntawm sealing, thawj sealing yog tsawg kawg yog 50kPa thiab tsawg kawg yog 30kPa tom qab durability.
Hauv automotive electronic systems, connectors xws li 6189-0100 ua lub luag haujlwm tseem ceeb. Lawv tsim ib tug choj ntawm kev sib txuas lus ntawm thaiv los yog cais circuits nyob rau hauv lub Circuit Court, cia tam sim no ntws thiab paub lub predetermined muaj nuj nqi ntawm Circuit Court. Automotive connectors yog ntau hom thiab cov qauv. Lawv feem ntau yog tsim los ntawm plaub yam txheej txheem yooj yim: kev sib cuag, vaj tse, insulators thiab accessories. Lawv kuj hu ua sheaths, connectors, yas rooj, thiab lwm yam nyob rau hauv kev lag luam.
Cim npe nrov: 2 pin poj niam kaw series connector rau qauv 1sz engine 90980-10843 6189-0100 dj7025b-22-21, Tuam Tshoj 2 pin poj niam kaw series connector rau qauv 1sz cav 90980-10843 6189-0100 dj7025b-2 .2-21 cov chaw tsim khoom
