Qhov Chaw Keeb Kwm: |
Zhejiang, Suav teb |
|
Hom Lub Npe: |
jorch |
|
Specification: |
DT Series Connectors cov khoom siv |
|
Qauv nab npawb: |
DT04-2P |
|
OEM Tshooj NO: |
DT04-2P |
|
Hom: |
Adapter |
|
Xim: |
Grey |
|
Txiv neej los yog poj niam: |
Txiv neej |
|
Hom Connector: |
Muab kaw |
|
Ntawv pov thawj: |
TUV, TS16949, ISO14001 System thiab RoHS |
|
Stlye: |
sealed connector ntsaws |
|
Kev Muag Khoom: |
Ib yam khoom |
|
Ib pob loj: |
1 x 2 x 2 cm |
|
Ib qho hnyav tag nrho: |
0.010 kg |
|
Muaj peev xwm muab khoom: |
100000 Daim / Daim ib hlis |

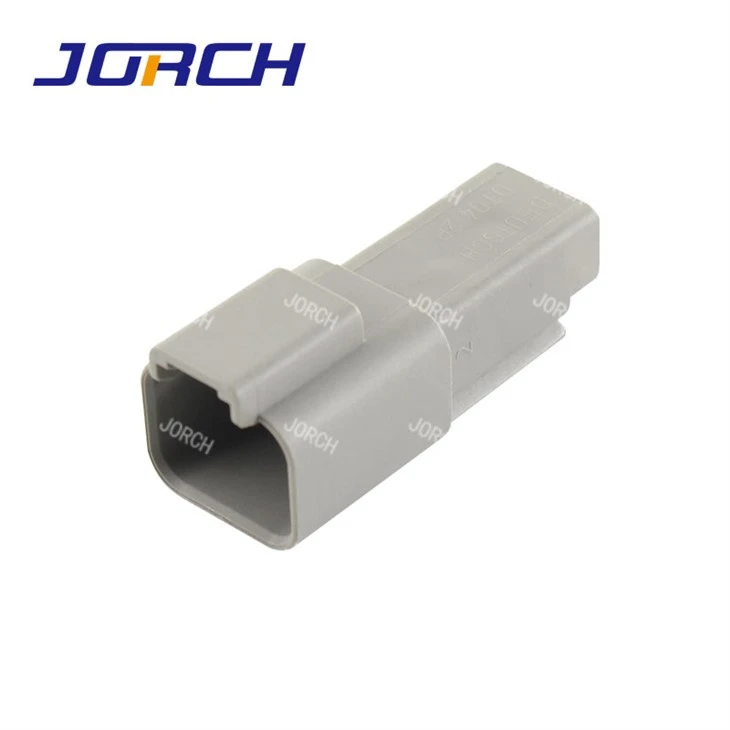

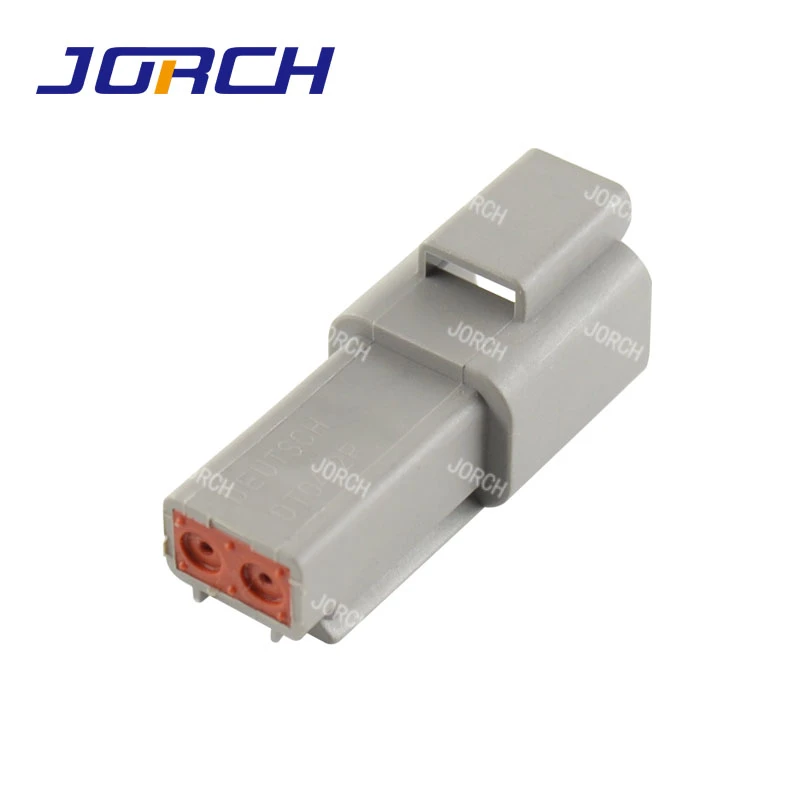

automotive connector qauv DT04-2P yog Deutsch DT series hlau-rau-hlau txiv neej lub davhlau ya nyob twg nrog cov yam ntxwv hauv qab no:
- Cov khoom txuas no yog tsim los rau kev sib txuas ntawm cable-rau-cable thiab raug kaw kom muaj kev tiv thaiv ib puag ncig siab.
- Nws muaj 2 txoj haujlwm (2 Txoj Haujlwm) thiab qhov nruab nrab (pitch) ntawm 5.46mm (0.215 nti).
- Lub connector thiab vaj tsev hom yog ib tug txiv neej lub davhlau ya nyob twg (Housing for Male Terminals).
- Lub connector yog sealable (Sealable) thiab lub ntsiab locking feature yog kev koom ua ke nyob rau hauv lub vaj tse (Integrated nyob rau hauv vaj tse).
- Hom kev tiv tauj yog Pin, qhov loj me yog qhov loj 16, mating txiv neej kawg txoj kab uas hla yog 1.59mm (0.063 ntiv tes), thiab qhov siab tshaj plaws tiv tauj tam sim no yog 13 amps.
- Lub connector lub cev khoom yog PA GF (polyamide nrog iav fiber) thiab xim yog grey.
- Nws ua tau raws li qib kev tiv thaiv ntawm IP67 thiab IP6K9K thiab dhau 12 hli nplaim taws kuaj ntawm UL 94 tus qauv.
