Khoom Paub meej
|
Qhov Chaw Keeb Kwm: |
Zhejiang, Suav teb |
|
Hom Lub Npe: |
jorch |
|
Specification: |
Nws Pib Waterproof Vaj Tsev Tshiab Zog EV Connector |
|
Qauv nab npawb: |
1-1564514-1 |
|
OEM Tshooj NO: |
1-1564514-1 |
|
Hom: |
Adapter |
|
Pin: |
10 pin |
|
Xim: |
Dub |
|
Txiv neej los yog poj niam: |
Poj niam |
|
Hom Connector: |
Muab kaw |
|
Kev Muag Khoom: |
Ib yam khoom |
|
MOQ: |
Kev txiav txim me me tuaj yeem txais |
|
Lub sij hawm xa tuaj: |
Muaj peev xwm txaus thiab muaj peev xwm ntau lawm kom ntseeg tau raws sijhawm |
|
Them Nyiaj: |
30% tso nyiaj ua ntej, 70% ua ntej xa khoom, 100% TT ua ntej |
|
Tsim Muaj peev xwm: |
Peb tuaj yeem muab cov qauv, OEM & ODM txais tos. Customized Drawing Nrog Decal, Frosted, Sau Muaj Raws li thov |

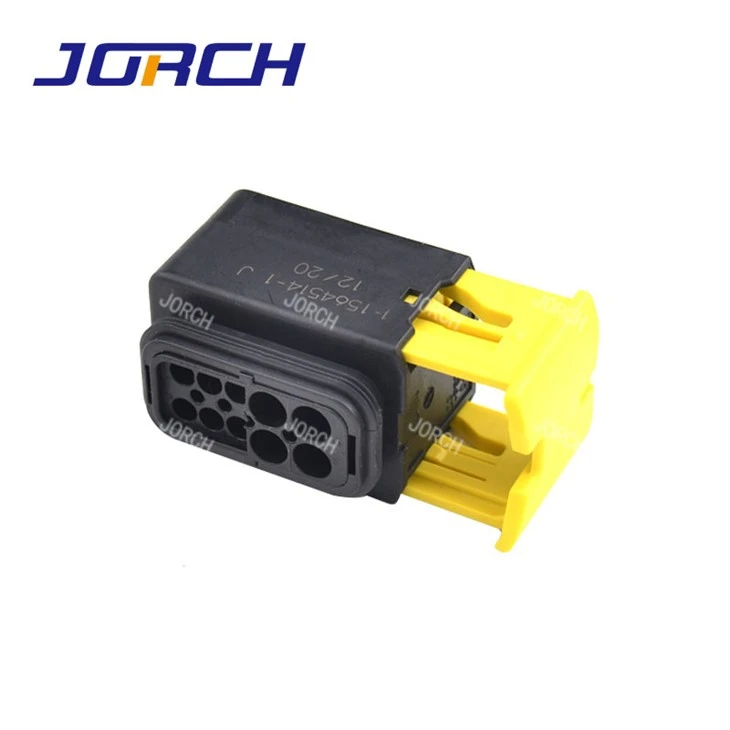

Lub 1-1564514-1 yog ib tug poj niam davhlau ya nyob twg nyob rau hauv ib tug hnyav-lub luag hauj lwm kaw connector series. Tsim los rau kev sib txuas ntawm cov hlau-rau-hlau, qhov txuas no muaj 10 txoj haujlwm, 4 hli (.157 nyob rau hauv) thiab 6 hli (.236 hauv) nruab nrab qhov sib nrug, thiab yog sealable. Nws yog tsim rau cov ntawv thov uas yuav tsum tau muaj kev tiv thaiv siab thiab kav ntev.
Nov yog qee qhov tseem ceeb ntawm 1-1564514-1 connector:
- Connector System: Hlau-rau-Wire
- Tus naj npawb ntawm txoj haujlwm: 10
- Kev sib txuas thiab vaj tsev hom: Poj niam tsev
- Centerline (Pitch): 4 hli / 6 hli [.157 hauv / .236 nyob rau hauv]
- Sealable: Yog
- Ua haujlwm voltage (VDC): 60V
- Nominal Voltage Architecture (V): 12, 24, 42, 60
- Hlau tawm lub kaum sab xis: 180 degree, 90 degree
- Cov Khoom Tseem Ceeb Xim: Dub
- Kev sib txuas thiab Keying Code: A
- Hu rau Hom: Poj Niam
- Sib cuag Loj: 1.5K, 2.8mm
- Tiv tauj tam sim no ntsuas (Max) (A): 40
- Khoom siv tsev: PBT GF
- Kev Ua Haujlwm Kub Kub: -40 - 140 degree [–40 - 284 degree F]
- UL Flammability ntsuas: UL 94V -0
- Kev tiv thaiv qib: IP67
Tsis tas li ntawd, qhov ntev ntawm 1-1564514-1 connector muaj xws li ib tug kab sib nrug ntawm 6.9 hli [.272 nyob rau hauv], ib yam khoom ntev ntawm 54.1 hli [2.13 nyob rau hauv], ib tug khoom dav ntawm 25.7 hli [1.012 nyob rau hauv], thiab ib tug connector qhov siab ntawm 31.25 hli [1.23 nyob rau hauv]. Nws yog ntim rau hauv lub thawv nrog ib pob kom muaj nuj nqis ntawm 300.
Cov khoom txhawb nqa muaj xws li ntau yam kev sib txuas npog, npog npog, PCB mounting hau, ib leeg-xaim ntsaws ruaj ruaj, thiab lwm yam kom tau raws li qhov sib txawv installation thiab sealing xav tau. Cov connector no yog siv dav hauv tsheb, kev lag luam tswj, kev sib txuas lus thiab cov ntaub ntawv sib txuas lus.
Cim npe nrov: 1-1564514-1 10 tus pin pib waterproof vaj tsev tshiab zog ev connector accessories tsheb qhov chaw connector 1-1564514-1, Tuam Tshoj 1-1564514-1 10 tus pin pib waterproof vaj tsev tshiab zog ev connector accessories tsheb qhov chaw connector 1-1564514-1 manufacturers
